Vacuum Assisted Toilets: Efficiency Meets Innovation

Understanding the Vacuum Assisted Toilet System

A vacuum assisted toilet system uses air pressure, not just water, to remove waste. This technology offers a powerful and efficient flush.

Here’s a quick overview of how they work:

• Vacuum Power: Instead of relying on gravity, a vacuum pump creates suction.
• Minimal Water: A small amount of water flushes the bowl, and the vacuum pulls waste and air away.
• Closed System: Waste travels through sealed pipes to a collection tank.
• Versatile: This system works well where traditional plumbing is difficult or water is scarce.

For businesses managing temporary sanitation, this technology is a game-changer. It means higher efficiency and better user experiences.

I’m Michelle Amelse, and as VP of Marketing and Customer Success at Satellite Industries, I bring over 26 years of experience in the portable sanitation industry, including deep expertise in the vacuum assisted toilet system technology. My role is to help our partners understand and leverage innovative solutions for their fleets.

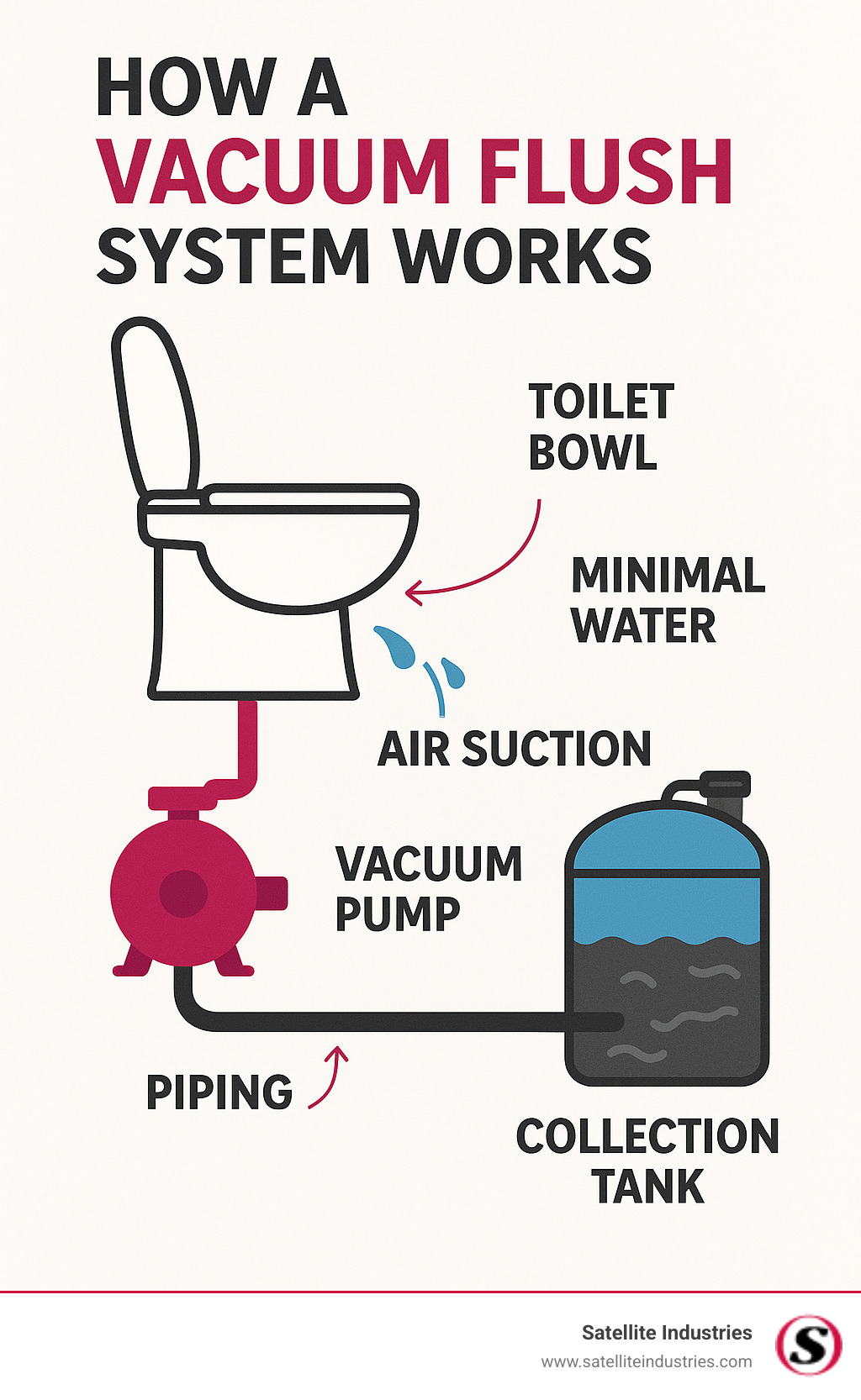

How Vacuum Toilets Work: A Look Inside the Technology

Ever wonder what makes a vacuum assisted toilet system so different from regular toilets? It’s all about flipping the script on how waste gets moved around.

Traditional toilets rely on gravity and lots of water to push waste down and away. But vacuum systems? They’re much smarter. They create a powerful suction that literally pulls waste through the pipes using high-velocity air. Think of it like a pneumatic tube system at the bank, but for waste management.

The real genius is in the pressure differential. When you flush, a valve opens and connects the toilet bowl to a network of pipes where the air pressure is much lower. Nature hates a vacuum, so air rushes in at high speed, carrying the waste along for the ride. This means waste can travel horizontally, vertically, and even around corners – something gravity systems just can’t do.

What’s really cool is that this closed-loop system keeps everything contained and controlled. The waste gets pulled through sealed pipes to a central collection point, making the whole process more hygienic and efficient.

The Flushing Mechanism Explained

Let me walk you through what happens when someone uses a vacuum assisted toilet system. It’s actually pretty fascinating once you see how all the pieces work together.

Flush activation starts the whole process. Someone presses the button, and the system springs into action. Unlike conventional toilets that just dump water into the bowl, vacuum systems are much more precise.

The magic happens when a special valve opens up, connecting the toilet bowl to the vacuum piping network. This is where the vacuum pump that’s been quietly maintaining low pressure in the pipes gets to show off its stuff.

Instantly, there’s a dramatic pressure difference between the toilet bowl and the pipes. The suction power is impressive – it pulls about 60 liters of air through the system with each flush. That air becomes the transport medium, carrying waste through the pipes at high speed.

Here’s what makes this system brilliant for rental operations: the pipes stay empty between uses. No standing water means no freezing in cold weather and no messy leaks if a pipe gets damaged. Instead of waste spilling out, air just leaks in.

The whole cycle wraps up with a minimal water rinse – just enough to clean the bowl for the next person. We’re talking about a tiny fraction of the water a regular toilet uses, which adds up to serious savings for your operation.

Core Components of a Vacuum Assisted Toilet System

A vacuum assisted toilet system might sound complex, but it’s really just several well-engineered components working together seamlessly. Let me break down what makes these systems tick.

The vacuum toilet fixture looks and feels like a regular toilet – we use ceramic bowls because your customers expect that familiar experience. But underneath, it’s engineered to connect perfectly with the vacuum system and use minimal water.

The vacuum piping is where things get interesting. These pipes are much smaller than what gravity systems need – typically just 2 inches in diameter. More importantly, they don’t need to slope downward constantly. This gives you incredible installation flexibility when setting up units at events or job sites.

At the heart of everything is the vacuum generating station. This industrial-grade pump system creates and maintains the low pressure that makes the whole system work. It’s built tough because it needs to handle consistent demand from multiple units.

The collection tank is where all the transported waste ends up. For rental companies, this centralized approach means fewer service calls and more efficient waste management. Instead of servicing individual units, you’re dealing with one central collection point.

Modern systems also include sophisticated control systems that monitor pressure, manage flush cycles, and even diagnose problems. These microprocessor-controlled units take the guesswork out of maintenance and keep everything running smoothly.

When you put it all together, you get a system that’s not just more efficient than traditional toilets – it’s more adaptable to the challenging environments where portable sanitation is needed most.

The Business Case: Key Benefits for Your Rental Fleet

For our valued partners in the portable sanitation industry, investing in a vacuum assisted toilet system isn’t just about offering a new product; it’s about making a smart business decision. These systems provide a compelling return on investment (ROI) through improved customer satisfaction, significant operational efficiencies, reduced service calls, and crucial market differentiation. We’re not just selling toilets; we’re providing solutions that make your business more profitable and your customers happier.

Best Water Efficiency and Cost Savings

Water is a precious resource, and its cost is a significant operational expense for rental companies. This is where the vacuum assisted toilet system truly shines.

Our vacuum toilets typically use an incredibly low amount of water per flush \u2013 as little as 0.3 to 0.6 gallons (1.2 to 2.3 liters). Think about that! Compare this to standard gravity-flush toilets, which can use anywhere from 1.6 to 2.4 gallons per flush, or even older models using 3.5 to 5 gallons. This translates to an astounding 80% to 90% saving on flushing water. Imagine the savings over hundreds of units and thousands of flushes! This isn’t just an environmental win; it’s a huge financial one for your bottom line.

According to statistics from the U.S. Environmental Protection Agency’s WaterSense program, toilets are often the single largest source of indoor water use in commercial buildings, making high-efficiency solutions a direct path to reducing utility bills and meeting sustainability targets.

Less water used per flush directly means less wastewater to collect, transport, and dispose of. This significantly reduces your operational costs related to pumping, hauling, and disposal fees. Fewer service cycles mean your trucks and personnel are deployed more efficiently, saving fuel and labor. It’s efficiency that you can literally take to the bank.

Beyond water, the energy consumption of a vacuum system can be surprisingly low. Some advanced units operate with annual energy costs as low as SEK 10 (roughly $1 USD), proving that efficiency doesn’t have to break the bank. We’ve seen the principles of water savings and reduced maintenance translate directly to vacuum systems, offering financial benefits that can lead to an ROI in less than 24 months.

Superior Hygiene and User Experience

In the portable sanitation world, user experience is paramount. A clean, fresh, and reliable unit directly impacts customer satisfaction and your brand reputation. Our vacuum assisted toilet system delivers on all fronts:

Comparing Flush Technologies: Vacuum vs. Conventional Systems

When you’re building or upgrading your rental fleet, understanding the differences between flushing technologies can make or break your investment. While traditional gravity-flush toilets have been the workhorses of portable sanitation for decades, the vacuum assisted toilet system represents a significant leap forward, especially when your customers need reliable performance in challenging conditions.

The choice between these technologies isn’t just about features—it’s about which system will deliver the best return on your investment while keeping your customers happy and your service calls to a minimum.

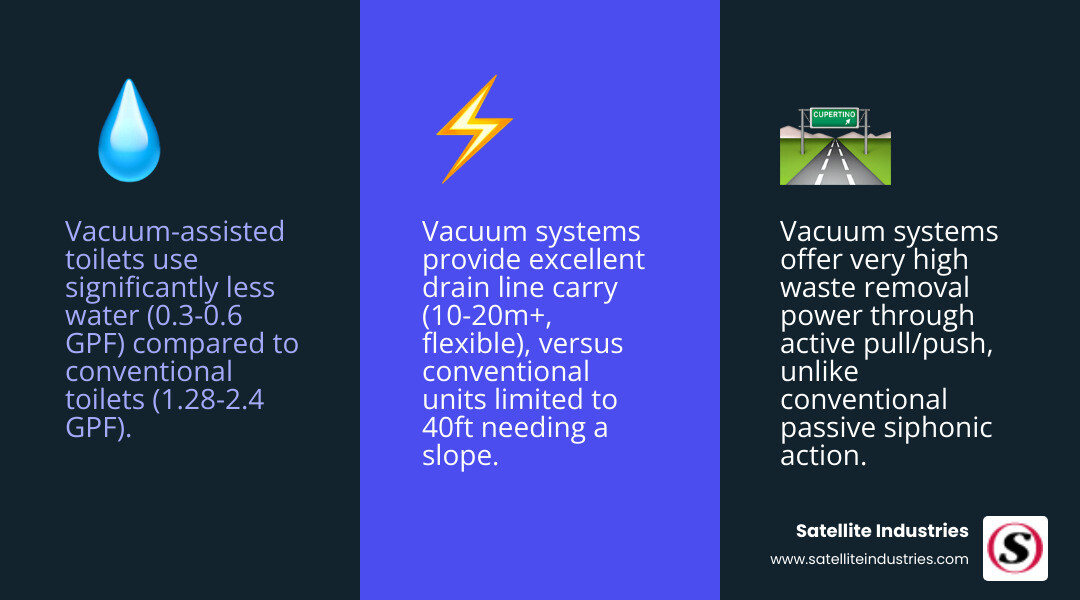

Water Usage and Waste Removal Efficiency

Let’s break down how these two technologies actually perform where it matters most for your business:

FeatureVacuum-Assisted Toilet SystemConventional (Gravity-Flush) ToiletWater Usage (GPF)0.3 – 0.6 GPF1.28 – 2.4 GPF (or more for older)Waste Removal PowerVery High (Active Pull/Push)Moderate (Passive Siphonic)Drain Line CarryExcellent (10-20m+, flexible)Good (up to 40ft, requires slope)Installation Flex.High (no slope, small pipes)Low (requires gravity slope)Typical Noise LevelModerate to High (brief)Low to Moderate

The water usage difference is where you’ll see immediate impact on your bottom line. Conventional gravity toilets, even the newer low-flow models, typically use 1.28 to 1.6 gallons per flush (GPF). Older units can use up to 2.4 GPF or more. Our vacuum systems? They operate at just 0.3 to 0.6 GPF. That’s not just impressive—it’s a game-changer for your water costs and disposal fees.

Waste removal power tells the real story about reliability. Traditional gravity toilets depend on siphonic action—essentially a “pulling” motion created by rushing water. It works, but it’s passive and limited. The vacuum assisted toilet system actively pulls waste with powerful suction and pushes it through the lines with high-velocity air. This dual action means fewer clogs, fewer service calls, and happier customers who don’t have to deal with out-of-order units.

Drain line carry is where installation flexibility becomes crucial. Gravity systems can transport waste about 40 feet, but only if you maintain a continuous downward slope. Vacuum systems can move waste 30 to 65 feet or more from a single flush, and here’s the kicker—they don’t need any slope at all. Pipes can run horizontally, vertically, even upward if needed.

The Vacuum Assisted Toilet System Advantage in Tough Environments

Here’s where the vacuum assisted toilet system really proves its worth. While conventional toilets work fine in ideal conditions, they struggle when things get challenging—and challenging conditions are exactly where your rental business needs reliable performance.

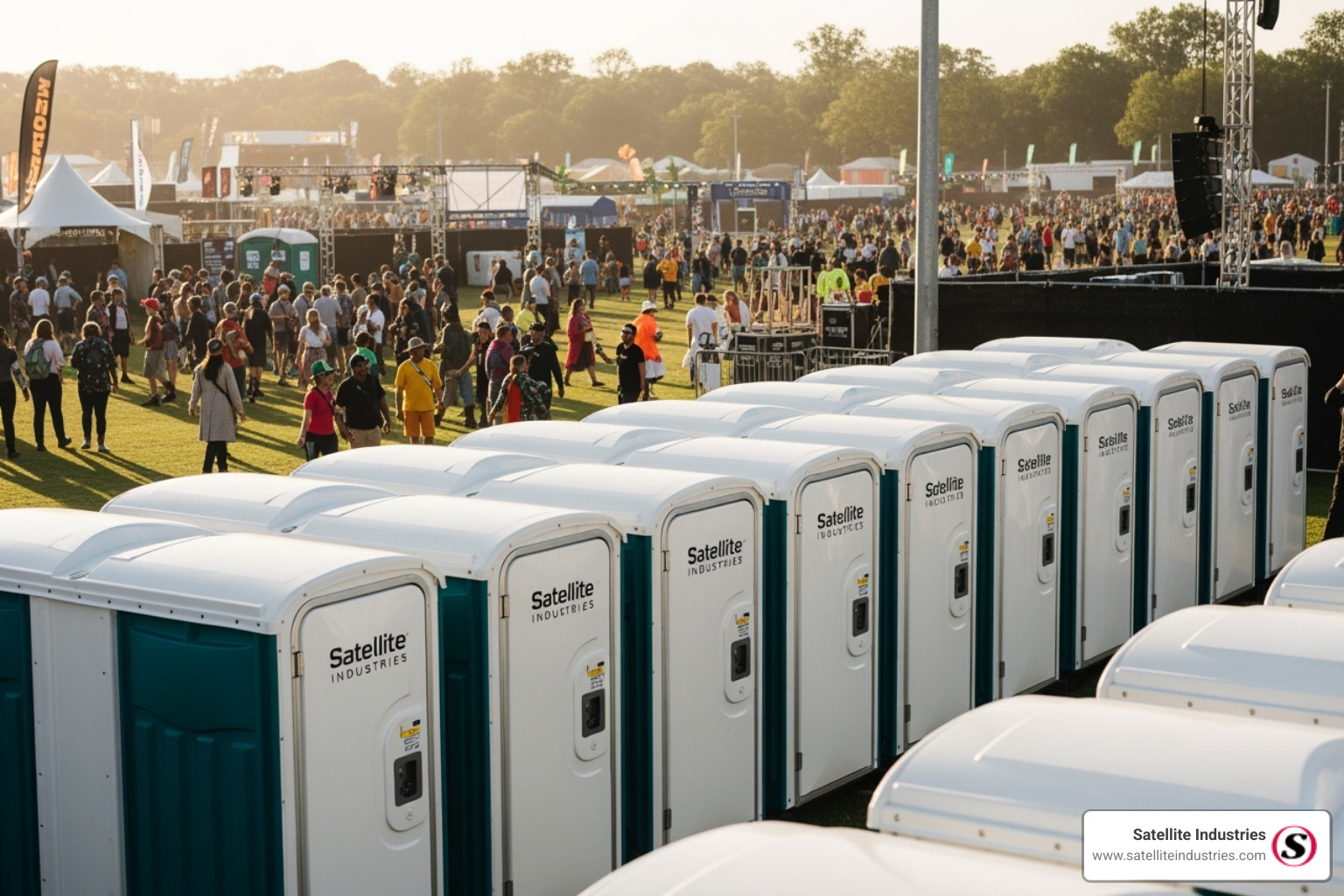

High-traffic events put enormous stress on portable sanitation. Think about a music festival with 50,000 attendees or a construction site with hundreds of workers. The rapid, powerful flush of a vacuum system keeps units operational during peak usage when conventional toilets would start backing up. Plus, the superior odor control means your units still smell fresh even after heavy use.

Remote and off-grid locations are where conventional systems hit their limits. When there’s no water main access or traditional sewage infrastructure, the minimal water usage of vacuum systems becomes essential. They can connect to various collection units, including bio units, and operate effectively where conventional toilets simply can’t function.

Temporary installations showcase the installation flexibility advantage. Whether you’re setting up for a week-long corporate event or a months-long construction project, the smaller pipe diameter and no-slope requirements mean faster setup and teardown. Your crew spends less time on installation and more time on profitable deployments.

The technology has already proven itself in the most demanding environments imaginable. Vacuum systems power sanitation on marine vessels, offshore platforms, trains, and aircraft—places where failure isn’t an option and space is at a premium. That same reliability and performance translates directly to your portable applications, giving your customers confidence that their sanitation needs are covered, no matter what.

When you choose a vacuum assisted toilet system for your fleet, you’re not just buying toilets—you’re investing in technology that delivers superior performance, dramatically lower operating costs, and the flexibility to take on projects that conventional systems simply can’t handle.

Ideal Applications for a Vacuum Assisted Toilet System

When it comes to expanding your rental fleet’s capabilities, the vacuum assisted toilet system truly stands out. Its incredible versatility and superior performance open up a whole new world of possibilities for your business, allowing you to tackle projects and events that traditional units simply can’t handle. Let’s look at some ideal scenarios where these advanced systems really shine for our rental partners.

Imagine providing sanitation at a beautiful outdoor wedding or a high-profile corporate function. For high-end special events like these, where every detail matters, a vacuum system delivers a truly premium experience. Guests will appreciate the superior hygiene and odor control, thanks to the active air suction with each flush. Plus, the powerful yet often quiet operation – some models are among the quietest vacuum toilets on the market – ensures a discreet and pleasant experience. This level of quality doesn’t just satisfy customers; it significantly improves your reputation and opens doors to more lucrative bookings.

Then there are the tough jobs – large-scale construction and industrial projects. These sites often lack traditional plumbing, and units might need to be placed far from utilities or on different levels of a building. This is where the vacuum assisted toilet system becomes your best friend. Its flexible piping and powerful waste transport mean you can easily steer complex job sites, even routing lines around obstacles or up multiple floors. This flexibility significantly reduces costly downtime that might come from clogs or inadequate sanitation, keeping your clients’ projects running smoothly.

You might be surprised to learn that vacuum technology has been the go-to solution for some of the most demanding environments out there. Think about marine and offshore platforms, where space is tight, and reliability in harsh conditions is a must. Or consider the restrooms you use on trains and aircraft – that’s vacuum technology in action! Its proven ability to move waste efficiently with minimal water, over long distances, and regardless of orientation, speaks volumes about its effectiveness and reliability. This same robust performance translates perfectly to portable applications. When hygiene and speed are critical, such as in temporary medical facilities and disaster relief zones, a vacuum system offers a reliable, low-water solution that can be rapidly deployed and managed, even in challenging or remote areas.

Finally, for those truly unique challenges, like renovations of historic or complex buildings, a vacuum system offers a brilliant non-invasive solution. Traditional plumbing can be impractical or impossible in these settings due to structural limitations or the need to preserve historic elements. With their small, flexible pipes, vacuum assisted toilet systems can be routed discreetly around obstacles, making installations in challenging architectural spaces much simpler and more cost-effective. This means you can provide essential sanitation without damaging valuable structures, opening up a whole new market for your services.

By expanding your fleet with vacuum assisted toilet system solutions, you’re not just renting out toilets; you’re empowering your clients to host events or manage projects in locations that were once considered impossible for high-quality sanitation. This directly translates into new revenue streams and a stronger, more versatile business for you.

Frequently Asked Questions about Vacuum Toilet Systems

We often hear great questions from our partners about how our advanced vacuum assisted toilet system technology can truly lift their operations and make their rental fleet stand out. It’s smart to ask these things before investing, and we’re here to give you clear, straightforward answers.

How durable are vacuum systems for a rental environment?

This is a fantastic question, and one we get all the time! We know that for rental companies, durability isn’t just a feature – it’s essential for your bottom line. You need units that can handle the rigors of transport, frequent setup, and constant use. The good news is, a vacuum assisted toilet system is actually designed with this kind of resilience in mind.

Think about it: in the toilet bowl itself, there are far fewer moving parts compared to many other systems. This means less to break or wear out. Then, you have the robust, industrial-grade pump stations that form the heart of the system. These aren’t flimsy components; they’re built to work hard, day in and day out, handling consistent demand. What’s more, the closed-pipe system adds another layer of protection. It shields the internal workings from external damage and helps prevent leaks, ensuring your valuable assets stay in top condition. All of this translates to incredible reliability and a long, productive service life for your rental fleet. We even design our precise control boxes for resilience, knowing they’ll face demanding conditions every single day.

Do vacuum toilets require more maintenance than standard portable toilets?

It’s natural to think that more advanced technology might mean more complex maintenance, but with our vacuum assisted toilet system, it’s quite the opposite! The maintenance process is actually streamlined and incredibly efficient for your team.

Instead of servicing individual units, your focus shifts to the central collection tank. This means fewer stops and more efficient routes for your service vehicles. Our systems are also designed for easy diagnostics, often featuring integrated fault detection and troubleshooting right there in the control unit. This helps your technicians quickly identify and resolve any issues, minimizing downtime. Perhaps one of the biggest maintenance advantages is the powerful flush action itself. It significantly reduces clogs – a common headache and service call generator for traditional portable toilets. Fewer clogs mean fewer emergency calls for your team, potentially lowering your overall maintenance labor over time. Plus, should a unit ever need attention, the quick unit replacement capability means some can be swapped out in as little as 10-15 minutes, ensuring your assets are back in service and earning revenue for you faster.

Can vacuum systems handle the demand of very large, high-traffic events?

Absolutely! This is where the vacuum assisted toilet system truly shines and proves its worth for high-volume deployments. They are inherently scalable and excel in scenarios with immense demand, like major concerts, festivals, or large sporting events.

Imagine this: a single, central vacuum pump has the power to service dozens, or even hundreds, of toilets simultaneously and with impressive efficiency. This centralization ensures that every single unit in your setup delivers consistent, powerful performance, even during the peak usage times when lines might form. And let’s not forget the incredible water efficiency. Because our vacuum toilets use so little water per flush, they require less frequent servicing for water replenishment and waste removal. This is a monumental advantage at large-scale, high-volume events, allowing your team to cover more ground and keep things running smoothly without constant interruptions for pumping or refilling. It truly allows you to offer premium sanitation that can stand up to the biggest crowds.

Conclusion: Lift Your Service with Advanced Sanitation

In the world of portable sanitation, staying at the forefront means constantly seeking out better ways to serve your customers and manage your fleet. That’s precisely where the vacuum assisted toilet system comes in. It’s more than just a toilet; it’s a smart, modern solution designed to bring innovation, efficiency, and exceptional durability to your rental business.

We at Satellite Industries pour our decades of expertise into advanced engineering. Our focus is on crafting robust vacuum technology that is also incredibly user-friendly. Every unit you add to your fleet is built to last, offering reliability that truly stands out. This commitment ensures that your investment provides a seamless and high-quality experience, from setup to service.

Choosing our vacuum-assisted solutions means you’re investing in a brighter future for your business. Imagine significantly reduced operational costs, happier customers who appreciate superior hygiene, and a clear competitive advantage in the market. These systems empower you to offer unparalleled service, whether you’re supporting high-end events, tackling demanding construction projects, or providing essential relief in critical situations.

We believe in empowering our partners with the very best tools in the industry. Let us help you explore how our advanced vacuum assisted toilet system solutions can truly transform your business and allow you to experience the Satellite Industries difference.
